Products GR email us About Us GR About Us En За Нас BG Home. About Us. Products. Contacts. Gallery. Download. WATER DOSER VS-1201pd



○
Power supply:24V-24W
○
Power supply of the control block - 24V
○
Flow: max. 50 l./min. *
○
Dimensions: 320mm.Х250mm.
○
Max. temperature of the fluid: max. 60°С
○
Working temperature of the device: max. 50°С

 * According of the water-main system’s pressure.

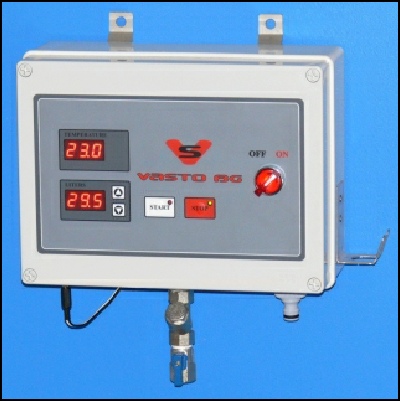

  VS-1201pd is a water doser. The main function is to proportion water, but is possible also to use it of the other fluids, which are not chemical active and do not contain particles, bigger than  admissible from the drinking water of the water supply system.

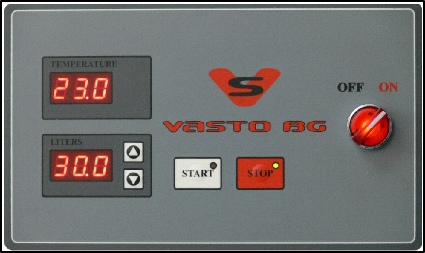

During the proportion process performed measuring of the current temperature of the fluid. The indications of the fluids quantity and the current temperature, they are visualizing on the front panel of the displays
The water doser has the following functions:
Previously assigning and automatically memorizing the wanted quantity in the last vessel. The parameter memorized and after switching-off the device, the parameter is by default of the next using.

Has a system for the control of the resting and/or unconnected censors.
The indications of the device are in degrees Celsius and in litters

The join is as follow: water supply system- trough the flexible joints   -1/2``.
